XGecu T48 [TL866-3G] programmer is universal mcu BIOS eprom programmer work more than 31000 chips. XGecu T48 [TL866-II updated] USB Minipro support EEPROM FLASH AVR MCU GAL PIC SPI high-performance in-circuit programming. XGecu T48 [TL866-3G] programmer full replace MiniPro TL866II PLUS TL866CS TL866A and work more better!!

XGecu T48 [TL866-3G] Programmer XGecu T48 universal programmer work 31000+ ICs for EPROM/MCU/SPI/Nor/NAND Flash/EMMC/ IC TESTER Replace TL866CS TL866II

With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable), newest model T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer. Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to256GBand programming speed is much higher. Suppport high-voltage chips, VPP Maximum up to25V, that is what TL866II cannot achieve. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code-runs much faster, support multilanguage menu (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian), it can automatically identify the operating system to install and run under Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11. Overall, T48 offers significantly improved performance and excellent value for money.

XGecu T48 (TL866-3G) hardware Parameters:
* 32-bit MCU with 120MHZ, 4-layer PCB Design, USB2.0 HS 480MHZ
* Volume: 10X6.5X2.8 cm (almost the same as TL866II)
* 16 channel ISP
Total 56-channel dedicated IO
56-channel high-speed high-voltage isolation
* VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable
* Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface.
* Self-test function, self-test each pin of VPP/VCC/GND/IO
* Suitable for developers and maintenance personnel, can do small batch production for high capacity chips, support simultaneously working with 4 Programmers on each computer.
*Support operating Systems: Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11

Option 1: XGecu T48 (TL866-3G) full replace  TL866II Plus
TL866II Plus standard version(stop to produced)

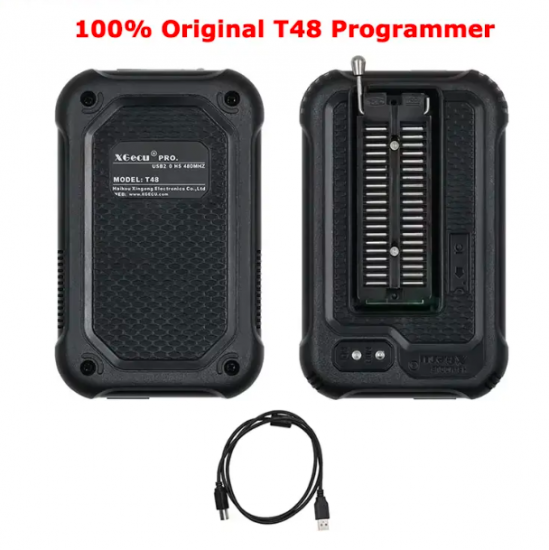

1 pcs x Universal programmer: XGecu T48
1 pcs x Cables


 Option 2: XGecu T48 Programmer with 10 adapter list
1 pcs x  Universal programmer: XGecu T48
1 pcs x  USB Cable
1 pcs x  Installation CD with latest MiniPro software
1 pcs x  PLCC32-DIP32 socket adapter
1 pcs x  PLCC44-DIP44 socket adapter
1 pcs x  8SOP8 to DIP8  adapter  (150mil)
1 pcs x  8SOP8 to DIP8  adapter  (200mil)
1 pcs x  PLCC IC extractor
1 pcs x  PLCC44 to DIP40 socket adapter
1 pcs x  PLCC28 to DIP24 socket adapter
1 pcs x  PLCC20 to DIP20 socket adapter
1 pcs x  TSSOP8 to SOP16 socket adapter

Option 3: XGecu T48 WITH 28 adapters list
1 pcs x Universal programmer: XGecu T48
1 pcs x USB cable and ICSP cable
1 pcs x TSOP32/40/48 with black socket
1 pcs x TSOP32/40/48
1 pcs x TSOP32
1 pcs x TSOP40A
1 pcs x TSOP40B
1 pcs x TSOP48-DIP44
1 pcs x SOP44 with socket
1 pcs x SOP44 simple board
1 pcs x PLCC44
1 pcs x PLCC32
1 pcs x PLCC28
1 pcs x PLCC20
1 pcs x SOP8 208mil
1 pcs x SOP8 150mil
1 pcs x SOP28 300mil
1 pcs x SOP16 150mil
1 pcs x SOP16-DIP8 300mil
1 pcs x SOP8&SOP16
1 pcs x MSOP8/SSOP8
1 pcs x SOIC8-DIP8
1 pcs x SSOP8-DIP8
1 pcs x PLCC EXTRACTOR
1 pcs x SOIC8 clip
1 pcs x SOP16 300mil
1 pcs x SSOP34
1 pcs x V1.8adapter
1 pcs x SOP20
1 pcs x TSSOP16/8
1 pcs x SOP8 clip



Mini Pro TL866II PLUS


Well-designed cheap professional programmer, Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small code -runs faster, supports bilingual(English and Chinese), it can automatically identify the operating system to install and run under WIN 2000/WIN XP/WIN 2003/WIN 2008/WIN VISTA /WIN7/WIN8/WIN10 (32BIit/64Bit).


The Outstanding advantages of TL866II programmer
1. Support simultaneously burn with 4 Programmers each computer
2. The Minimum Volume and the lowest Power Consumption and Do not Feel any Heat in Process.
3. All chips do not need external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
4. Best internal 40 Pins over voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.
5. Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH
6. Unique serial ICSP interface. supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP
7. Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.
8. Chip auto serial number is the most complete and practical.
9. Original chip encryptionoperation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.


High Speed Programming
This programmer has Built-in MCU with high-performance and high-capacity USB interface at the communication speed of 12Mbps being in line with ( For each chip) well-designed programming algorithm and USB high-speed communications. It may be one of the fastest integrated development programmers, the speed has been met the needs of small-quantity efficient production.


Unique ultra-low power consumption
The whole programmer is equipped with the ultra-low power chips and it is furnished with electricity via USB Interface. It is the first comprehensive programmer to program all the chips without an external power supply. Their own power consumption is less than 20mA (it is 7mA when the programmer is not programming, LED power indicator use largest electricity, 5mA each one) and Programming power loss rate is less than 20% so that the programmer can supply the high VCC VPP programming electric current. Programmable chip can be provided with enough programming power (the largest programming power output is 2 watts that is impossible for a chip to use 2 watts of programming power). And you hardly feel the heat of the programmer after such long continuous work.


easily portable performance
This is one of the smallest products in the world and the dimensions are 10CM*6CM*2.5CM (it is as small as a driving license). In addition, you don't need to carry with an external power supply because of its ultra-low power that makes it more portable.


Programmable programming power supply
VPP and VCC programming voltages are independently program-controlled: programmable VCC is from 1.8V to 6.5V; VPP is from 1.8V to 18V. The fluctuation of power supply is minor because of the multi-stage LC filter.


Best overvoltage, overcurrent protection
VCC, VPP power supply of the Programmer is furnished with the independent Grade 3 overcurrent protection and the protection of automatically cutting off power supply. Each pin of 40-pin programming socket has VPP overvoltage protection. It can effectively prevent from putting a chip in the wrong place or short circuit due to other reason. In this programming case, it can also stop VPP high voltage from coming back to the internal of the programmer and damaging the device. Really make sure that the programmer will not be damaged when there is any worst-case short circuit. At the same time, the programmed chip can be efficiently protected.
This programmer will cut off the programming power supply VPP and VCC within 100us and send the message to the application program when there is short circuit. The programmer and PC won't be reset when there is short circuit because of the multilevel overcurrent protection.


40PIN universal pin
It is the most versatile pin among 40PIN quasi-universal pins. You don't need to move or turn around the chip when programming, just congruously put the chip forward and the handle direction of the programmer is the PIN1 place. Its design accords with the common operating habit of user.


upgrading Function
This programmer is equipped with upgrading Function of the built-in hardware firmware program that can make sure your programmer's firmware flash and application software can be timely updated. You can complete the upgrade by downloading the upgrading program through the manufacturer's website.


Second development function of chip serial number
This programmer has a variety of automatic numbering functions that are used commonly. You can get any serial number through DLL Dynamic Link Libraries by using the custom algorithm. In mass production, the function enables each chip to produce only one identifying information that can be encrypted by the custom algorithm. So you can effectively protect your rights as a customer.


Unique universal serial programming interface ICSP
This programmer can program through the 40-PIN universal socket and is provided with an ICSP serial programming port. For some in-circuit serial programmable chips, you can program MCU by choosing ICSP port. You can get the clear instruction diagram in the programming software for the ICSP port wiring method. That is to say, you can directly program and update the chip soldered on the board.
Note: Now ICSP can in-circuit serial program 24/25/93 Serials ,ATMEL89S51, ATMEL89S52, AT45DBxxx, a whole series of AVR ATMEGAxxx, MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx, as well as a full serial of SYNCMOS SM59Dxx SM59Rxx. The variety of microcontroller that can be supported in-circuit programming will be continually increased in the future. Six ICSP wires of this programmer, except a ground wire, other wires led full functional I2C, SPI and UART serial main wire, be suitable for all kinds of serial communication. In addition, each wire can supply VCC, VPP or GND with high current.


54/74F/LS/HC CMOS4000 series IC functional tests
This is the first development programmer to test the common logic integrated circuit and this test can be located the errors of logic gate circuit, as well as test any possible input combinations of integrated circuit.


Programmer self-testing function
This programmer can test itself on each pin of VPP, VCC, GND and I/O information, at the same time it can run an inside short-circuit test on VPP, VCC current.


AVR microcontroller one-to-one soft encryption
AVR microcontroller has an RC Calibration (calibrate bytes). Only one of dozens of chips may have the same bytes value and it cannot be modified. Microcontroller software can read this value and determine whether the code is used by other chips. Through custom encryption algorithm, it can stop those who decrypt chips with ulterior motives from directly using. The encryption algorithm is so complex that it is not easy to decrypt. But, about "encryption", there is a problem for developers - each chip is different - it is impossible to manually calculate one by one and respectively compile source code if the algorithm is complex. This programmer can automatically read into RC bytes before programming. The developer can get the bytes value of the chip in the DLL dynamic function and then automatically calculate the encrypted data according to the request and put it in the memory, efficiently completing mass production. (A detailed encrypted instance of the ATMEGA8 in the installation package is available for reference)
