WIFI V-AS6154 diagnostic interface can support WIFI and USB Connection. V-AS6154 can replace the v-as 5054a and v-as 5055. ODIS7.1.1 Wifi v-as6154 support multi-language, also can work with V-AS6150 and V-AS6160A.

2021 New WIFI V-AS6154 OD-IS 7.1.1 VX VAG Diagnostic Tool for VW Audi Skoda

Top 8 reasons to get V-AS6154:

1.Latest diagnostic and programming interface for the applications VAG ODIS-S (Service) and ODIS-E (Engineering),can replace the V-AS 5054A and V-AS 5055.
2.Available for Off-board Diagnostic Information Engineering from V6.2 onward and Off-board Diagnostic Information Service from V3.0.3 onward.
3. Support all VW Audi Skoda vehicles from 2000 onward including NEW & FUTURE MODLES under production.
4.Support WIFI & USB Connection:With wireless communication technology, can achieve wireless communication of the vehicle and diagnostic interface.
The following countries can use both WIFI & USB Connection:
Australia,Bosnia and Herzegovina,Brazil,Canada,Switzerland,Cyprus,Czech,Danmark,Estonia,Finland,Greece,Hongkong,Israel,India,Ireland,Italy,Lativia,Mexico,Netherland,New Zealand,Poland,Russia,Argentina,Korea,Singapore,Slovenia,Turkish,Ukraine ,UAE,United States,United Kingdom.
Also support USB module transmission, to ensure the reliability of diagnostic interface data transmission.if your country is not on the above authoriazted Country, you just can use USB Connection Module.
5.Support Multi-language:English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russian, Greek, Chinese
6.Update by CD: Latest Version is V6.2.0. Note: Do not support Old V19 Software.
7. If you want to do Seat, Bentley and Lamborghini, please buy VAS 5054A with Old V19 Software.
8. One year warranty

Note: when install the software, please choose 5054A.

WIFI V-AS6154 OD-IS HW For Choose:

Option 1: WIFI V-AS6154 OD-IS driver program install from CD, not support update HW（Licenses data>2020-12)

Option 2:  WIFI V-AS6154 OD-IS driver program support VX Manager,  Could update HW(License data>2030-12) Newer ODIS software install from link.ODIS 9.1.0 Download

Option 3:  Super quality WIFI V-AS6154A Could update HW, Newer ODIS software install on HDD, support CAN FD DOIP.

V-AS6154 Infrastructure mode:

In infrastructure mode, several network-capable devices can be connected together (network subscribers).
For a wireless network, a WLAN access point is required. This access point forms the connection to WLAN-ready subscribers.

V-AS6154 Point-to-point connection:

With point-to-point connection via a wireless network, V-AS 6154 creates a radio network. V-AS 6154 thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface V-AS 6154. V-AS 6154 is configured using the web-based user interface.

V-AS6154 OD-IS 9.10 Software New Functions:

– Estimated remaining times are shown for ECU flash operations.
– Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
– The measured value display has been improved.
– Documents in GFF are displayed in separate windows.
– One message box will be shown at the beginning of the test drive mode.
– GFF hotfixes can be integrated during diagnostic sessions.
– Danger messages have been revised.
– Stopping of diagnostic sessions may be interrupted.
– Automatic deletion of autosave diagnostic protocols after successful transmission.
– Selection of PassThru diagnostic hardware has been improved.
– ODIS Service Software update has been stabilized.
Note: Not support DOIP CAN FD

V-AS6154 Technical data:


Dimensions: approx. 136x48x25mm
Weight: approx. 150g
Power supply: 8-18V via vehicle connector
Output: approx. 5W
Temperature range: Storage -20°C to +85°C, operation -20°C to +40°C
PC interface (wired): USB 2.0 High Speed, 480 Mbit/s or Fast Ethernet, 100Mbit/s (via LAN module)
PC interfaces (wireless): WLAN 802.11 ab/b/g/n 2T2R 300 Mbit/s Client Mode (WPA2 EAP-TLS, WPA2 PSK)
AP mode (WPA2 PSK)


Package Includes:

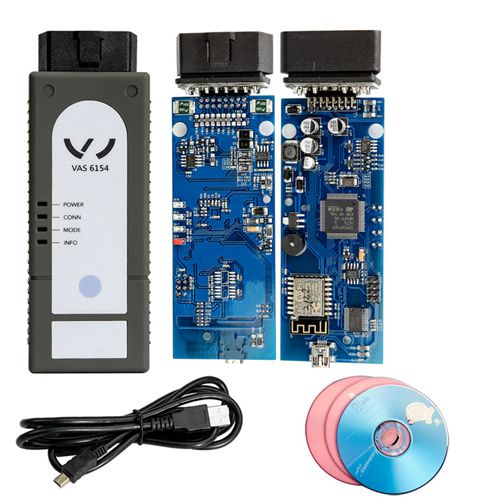

1pc x Diagnosis interface V-AS 6154
1pc x USB cable
1pc x CD (2020-12 license one install from CD OD-IS software )
