New OPCOM Real PIC18F458 V1.7 is latest update opcom from firmware 1.65. Opel Op-Com diagnostic interface for Opel cars covers almost all Opel car diagnostics. Opcom 2014 with Single Layer PCB support flash firmware update.
Opcom OP-Com with PIC18F458 chip Firmware V1.7 2014V Can OBD2 for OPEL with Single Layer PCB
OPCOM Firmware 1.7 Features:
1. OPCOM is a special PC-based diagnostic interface especially for OPEL.
2. Software Version:2010/2014 Firmware Version: 1.7
3. With Real PIC18F458 Chip Support Firmware Update
Note: Never Update opcom Online, It Will Damage The OP-COM ! There is no need to active the software, can be used directly

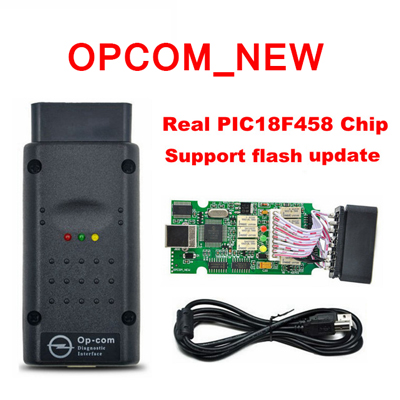

Opcom Firmware 1.7 PCB Display:
Attention for Latest Opcom Software VAUX-COM_120309a.exe:
1. If you run obd2cartool.com opcom on XP or Win7, please make sure you install dotnetfx35_SP1 system cookie, or Opcom software can't perform well
2. When you install on Win7, please open laptop via administration, and read the installation video on CD carefully.
New OPCOM V1.70 Firmware Opel diagnostic interface Function:
1. It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information
Full fault code text description:
1) Full status information (Present, Not present, Intermittent)
2) Users can print out, save, or copy the fault codes to any other application. From the fault codes window, users can go directly to the measuring blocks window.
3) The program shows measuring block information on many control module, users can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, the older system like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow during communication, while the newer Multec or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!
You can also run output tests on many controllers:
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps
Opcom Single Layer PCB Package includes:
1pc x OP COM Interface
1pc x USB Cable
1pc x Opel Opcom Software and opcom Drivers CD
