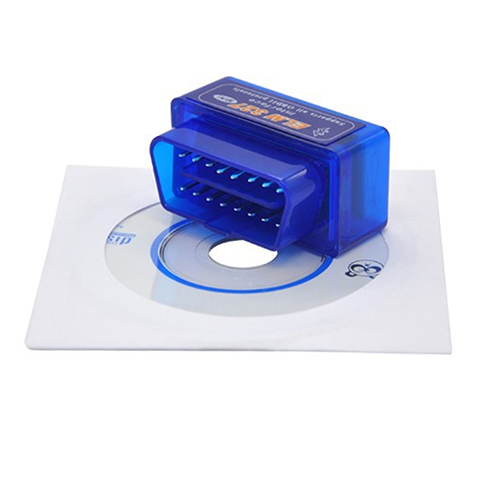

MINI ELM327 bluetooth ELM327 is the wireless scan tool. MINI ELM327 supports all OBD-II protocols,Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning ,Clear trouble codes and turn off the MIL

Mini ELM327 Car Scanner Tool ELM 327 For Android Torque Windows

ATTENTION:
It only works with car (can not support Diesel or Truck).
It only works with Android 4.0-Android 4.4 version.
ELM327 can do MOST of the OBDII vehicles, but it CAN NOT do all models.
It CAN NOT work on IOS, if you need an item which work on IOS, pls buy our WIFI ELM327
If the CD is broken, pls contact with us,we will give you download website.


Option software:

Option 1: V2.1 mini elm327

Option 2: V1.5 mini elm327

Highlights:

The newly developed wireless scan tool.
It supports almost OBD-II protocols.
It is the latest version 2.1 or V1.5 optional
Bluetooth connection, no Batteries, Cables, or Switches.
Wireless (Bluetooth) 5~ 10 meters
Retrieve Fault Codes (DTCs) and clear Check Engine lights.
Can also be used with a PC with a Bluetooth Card.


Features:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Set the maximum number of responses to obtain
Remove spaces from ECU responses (to speed data transmission)
Store a unique identifier in EEPROM
Set the CAN mask and filter with one command
Easily switch between variable and fixed CAN message lengths
Send CAN remote frames (RTRs)


Display current sensor data, including:

Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others...


Multi-Protocol Support:

1. ISO9141-2(5 baud init, 10.4Kbaud)
2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3. ISO14230-4 KWP (fast init, 10.4 Kbaud)
4. ISO15765-4 CAN (11bit ID, 500 Kbaud)
5. ISO15765-4 CAN (29bit ID, 500 Kbaud)
6. ISO15765-4 CAN (11bit ID, 250 Kbaud)
7. ISO15765-4 CAN (29bit ID, 250 Kbaud)
A.SAE J1939 CAN (29bit ID, 250*Kbaud)
B.USER1 CAN (11*bit ID, 125*Kbaud)
C.USER2 CAN (11*bit ID, 50*kbaud)
*default settings (user adjustable)


Vehicle Coverage:

Works on almost OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles


Alfa Romeo/ Ad/ Bentley/ BW/ C-adillac/ C-hevrolet/ Chrysl/ Citroen/ Daewoo/ Fiat/ F-ord/ G-M/ Hod/ Hyundai/ Isuzu/ Jaguar/ J-eep/ Kia/ Landover/ Lexus/ Mazda/ Mercury/ Mini/ N-issan/ Mitsubishi/ Opel/ Peugeot/ Posch/ Renault/ Rover/ Saab/ Seat/ Skoda/ Toyt/ Vauxhall/ Volvo/ VW


For your information:

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.


Software Included:

Scantool_net113win (Full Version)
EasyOBDII V2.2 (Free Version)
OBD2Spy (Demo Version)
Scan Master-ELM (Demo Version)
wOBDCRAZY  (Demo Version)


This hardware can match much other software still! But most of them are not free!
Works for Windows98/ME/2000/XP/Vista & 7!
This tool does not match abs and airbag system!
Bluetooth pair code: 1234
Main Control Chip: PIC18F2480

V1.5 ELM327 HQ support Protocols:

Packing List:

1* EOBD / OBD2 Bluetooth Diagnostic Interface
1* CD


FAQ:

Q: What's the version of this unit?
A: It's V2.1 and v1.5 version for optional.


Q:What's the difference for the Version V1.5 and V2.1?
A: The V1.5 version one can do much more car models than V2.1 one. V1.5 Version can support SAE J1850 PWM(41.6Kbaud) and SAE J1850 VPW(10.4Kbaud) Protocols, but ELM327 V2.1 can not support
If you need ELM327 V1.5, pls kindly contact with us:skype: great2obd


Q. What's the Password of the Bluetooth?
A: It's "1234"


Q: If it can do all most car models and diesel car models?
A: No, it can just support most standard OBD II car models, Dieser car models can't be supported


Q: Which android system phone can compatible?  If it can compatible with Iphone?
A: Please kindly use Android V 4.0- 4.4 . The Iphone can't be supported


Q: Why my computer can't connect with this Bluetooth?
A: This unit is with V2.0 version Bluetooth, check your computer if it's V2.0 version, or please use V2.0 bluetooth adapter


Q:Why my phone can't connect with the Bluetooth?
A: Please kindly check if you choose the bluetooth connect way in software setting


Q:My phone can connect with the unit, but it can't find my car?
A:  1. please check if you choose the "OBD II" adapter of " adapter choice" in setting software. 2. check if your android system version is V4.0 - 4.4 .  3. check the protocol of this car if it can be supported, and try with more new cars
