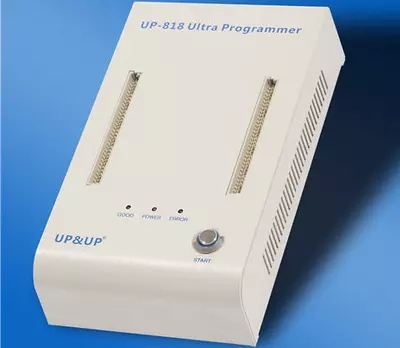

UP-818P Series programmer is Ultra flash memory programmer, UP-818P Ultra programmer works for BGA NAND FLASH, SERIAL FLASH, MoviNAND, iNAND, eMMC flash memory.
UP-818 Ultra programmer have updated to UP-818P programmer, UP818P will replace UP818E programmer completely, it has the all function of UP818E
Sedum UP-818 Ultra programmer have be updated to UP-818P, Pls note it, new UP-818P need new programmer adapter, old UP-818 series programmer adapter can't be used on new UP-828P programmer, When you place the order, pls leave the message to us, we sell 2 kinds UP series programmer adapter: UP-828 series and new UP-828P series,
New UP-818P / UP818P adapters is the same price with Old UP-828 / UP-818 adapters, If you need the Adapters for UP-828P / UP-818P programmer, just leave the message to us when place the order.
The UP-818P Series programmer is High Speed Universal Programmer for flash memory developer, UP-818P Ultra fast universal programmer will enables examiners the ability to acquire the data from a variety of flash memory, including: NAND FLASH, SERIAL FLASH, MoviNAND,iNAND, eMMC...
The UP-828 Programmer offers a growing number of IC sockets and chip adapters, it supporting a growing number mobile device memory chips.
UP818P Universal Programmer features
1. UP818P Universal Programmer supports the newest types of FLASH, NAND FLASH, SERIAL FLASH, MoviNAND, iNAND, eMMC etc, in addition, the BOOT area of iNAND, eMMC and MoviNAND can be read and written;
2. Support 48MHz read and write pulse, the highest support speed of read and write close to the limits of devices. Program + Verify one 1Gb NAND FLASH only in 34 seconds, program + Verify one 8Mb FLASH only in 4 seconds
3. 110 pins universal driving, Support VCC of devices from 1.2V to 5V;
Auto-test short circuit or bad contact of devices, with intuitionist graphics Real-time detection of short circuit or bad contacting of devices, Guarantee the safety and quality of programming device;
4. Program interface is simple, the device operation unified, different devices configuration and set option use uniform window entrance; especially designed for mass production compact interface, even front-line workers can easily using it freely;
5. Simple operation, accessible, general device programed only need to set program options and device configuration, operation can be carried out simply, and flow is clear, don't need a lot of training can be easy to get started;
6. Adopt reliable engineering encryption technology and innovatively using disposable engineering password mechanism to ensure the project files in transmission and in the process of using security, and control production, powerful safeguard engineering data security;
7. High effective batch production mode: with one computer, you can run at most 8 UP818 programmer, occupy less resource; And SERIAL FLASH support the four modules, that is one host write four devices at the same time;
8. Cluster quantity production support each host asynchronous, speaking, reading and writing, need not synchronous wait: Putting IC into each host programmer can be burned, or other operation without waiting , save the waiting time; Using one interface, but clearly operat each host, without switching back and forth, to further improve the overall efficiency of the mass production;
9. High compatibility, durable BGA adapter, supporting the patented product BGA adapter average life-span more than 20 thousand times, usability and lifetime far beyond the import adapter
10. Perfect detailed log files and production programming statistical report,convenient programming quality tracking;
11. Supports WINDOWS XP/VISTA/WIN7/WIN8 operating system;
UP-818 programmer Hardware specifications
1. communication interface: USB2.0 (compat USB1.0/1.1);
2. System requirements: WINDOWS XP / 2003 / NT/WIN7 operating systems, 256MB or above RAM, 1GB or above hard disk space;
3. Power Specifications: Input AC 100-240V, 50/60HZ; output DC 5V/1A;
4. Host size: 208*128*45mm, 0.8kg
UP818P programmer pakcage list:
1. A host, an external power, one USB 2.0 cable, user manual, installation software CD, and a warranty card;

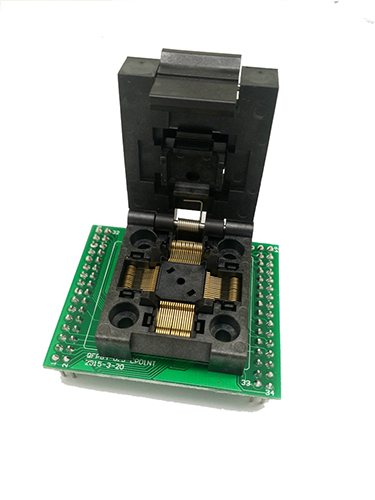

2. Optional: IC socket and IC adapter(suit for pin pitch 0.65mm, 0.75mm, 0.8mm, 1.0mm, 0.5mm etc devices; Support Package: FBGA, LGA, BGA, EBGA, SOP, TSOP, PSOP, TSSOP, SDIP etc..)
UP818P flash memory programmer update
1. Aperiodically update the adding new devices, and update it on our website
2. Users can download the latest software freely on our website, also can get free software CD
3. Users can apply for special device support
Software for UP-818P Series High speed universal programmer：
In the warranty period, and match the warranty coverage, the Programmer can be free repair in one years
Adapter and socket are belong to damage easily things, not warranty
