Sedum UP-818E Ultra Programmer is high speed eMMC Flash Memory programmer. UP 818E eMMC programmer support for eMMC chip burner programmer Specifically, Support the full range of eMMC pin. UP-818E and UP-828E eMMC flash memory programmer can compatible with almost BGA adapter.

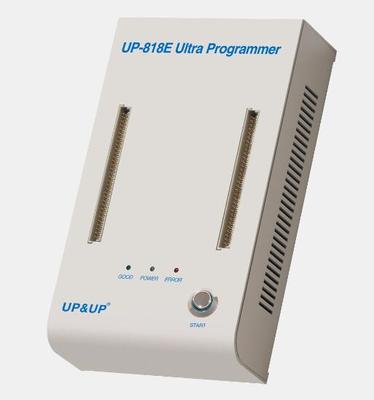

Sedum UP-818E Ultra programmer UP818E For eMMC Flash Memory
UP-818E eMMC programmer features:
Support for eMMC chip burner programmer Specifically
Support IC package: 12 * 16mm/12 * 18mm/14 * 18mm / 11.5 * 13mm and so on
Support chips Pins: 153Pin / 162Pin/169Pin/186Pin etc.
Support eMMC specification, version: 4.3 / 4.4 / 4.41 / 4.5
Supports 3.3V, 1.8V and 1.2V the eMMC chip
Support any Extended CSD literacy
Support USER, BOOT, RPMB and GPP regional literacy
Support for custom reader USER area size, greatly improve work efficiency
Support setting BOOT area, RPMB area and GPP area capacity size
Support open WrRel (Reliability write) and SLC mode OTP setting
Can master the detailed analysis shows that the chip information
UP-818 eMMC programmer specifications
communication interface: USB2.0 (compat USB1.0/1.1)
System requirements: WINDOWS XP / 2003 / NT/WIN7 operating systems, 256MB or above RAM , 1GB or above hard disk space
Power Specifications: Input AC 100-240V, 50/60HZ; output DC 5V/1A
Host size: 208*128*45mm 0.8kg
Supporting the patented product BGA adapter average life 20,000 times or more, far more than the life of ease and import the adapter. Perfect detailed log files and production programming statistical report, convenient programming quality tracking. Supports WINDOWS XP/VISTA/WIN7 operating system
Aperiodically update the adding new devices, and update it on our website
Users can download the latest software freely on our website, also can get free software CD
Users can apply for special device support
In the warranty period, and match the warranty coverage, the UP-eMMC Programmer can be free repair in one years
Adapter and socket are belong to damage easily things, not warranty
If has some question in the use process, you can press F1 view the help file; Also can check this user manual related instructions, the software and hardware can be updated by offical website
Software for UP-818E / UP-828E Series High speed eMMC programmer:
http://www.gzjingtian.cn/Software.htm, and check the supported IC list and adapter models
UP-818E programmer Package list:
A host, an external power, one USB2.0 cable, user manual, installation software CD, and a warranty card
Optional: UP-eMMC Programmer adapter
