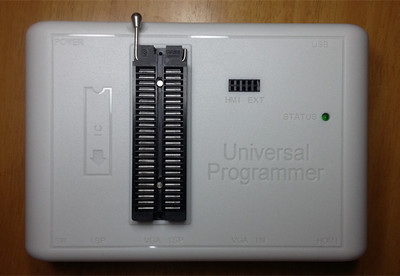

RT809H Programmer is the 48-pins powerful fast universal Programmer extremely, RT809H support eMMC, PC BIOS, CAR DVD, SMART TV, NOR,NAND, EC,MCU, ISP...

 RT809H Programmer For eMMC CAR DVD SMART TV BIOS


• Can automatically detect chip number for all Chips.
• Can put ic in any position and make intelligent sense.
• Support Read and program Laptop I/O via keyboard line.
• Support Read and Program LCD TV VIA VGA and HDMI PORT.
• Support ADD new flash by yourself without wait for factory.
• Built in Most of repair applications TV,DVD,DVB,and many isp software.
• Make selftest for LCD TV itself and diagnostic fault.
• Read and programing flash on motherboard without removing out
• Support Read and Programming OTP area .
• Support UPTO 64GB NAND FLASH

RT809H Programmer Features:

  48-pins powerful pindrivers, no adapter required for any DIL devices
· ISP connector for in-circuit programming
· VGA port to read and write LCD TV-MONITORS without disassembly .
· HDMI port to read and write LCD TV-MONITORS without disassembly .
· Connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface
· Comfortable and easy to use control program, works with all versions of MS Windows
· can support any flash and very easy to add new flash .
· High programming speed.
·Advanced and powerful software functions.
·Online Technical Support is also available 24 hours .
· One Year warranty.
·Provides very competitive price coupled with excellent hardware design for reliable programming.
· the programmer performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by overcurrent protection and signature-byte check help prevent chip damage due to operator error.
· The selftest capability allow to run diagnostic part of software to thoroughly check the health of the programmer.
·Support Auto select for any series of flash including TSOP48-NAND-EMMC-PLCC,,ETC however Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.
· All known data formats are supported. Automatic file format detection and conversion during loading of file.
·The software also provide a special information about programmed device. As a special, the drawings of all available packages are provided
· The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.

RT809H PROGRAMMER Package list:

1pcs: RT809H UNIVERSAL PROGRAMMER
1pcs: USB Cable
1pcs: VGA Cable
1pcs: SOP PAST Socket
1pcs: TSOP-VSOP-SSOP ADAPTER
