Wellon VP-596 programmer is ZIF 48Pin Universal Programmer, Wellon VP-596 supports over 34,000 devices, including PIC microcontrollers, EEPROMs, dsPIC, AVR and other microcontrollers like AT89, plus PLDs and Flash memory.

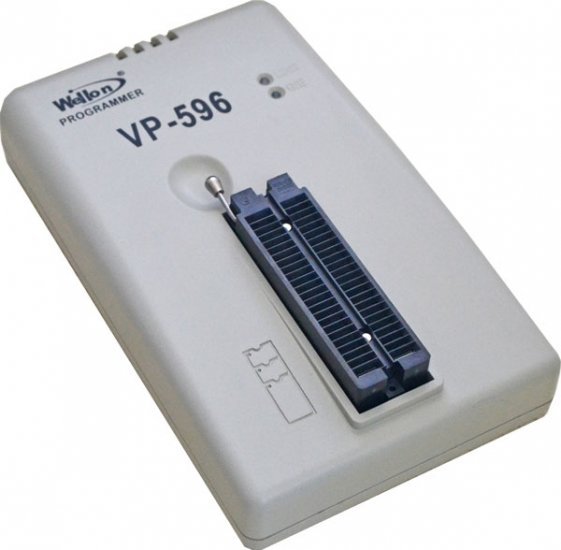

Wellon VP-596 ZIF 48Pin Universal Programmer

Wellon VP-596 programmer Features:

Dimension:168*108*26mm

Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/2.0A; power:18W
48 Pin ZIF socket with universal pin-drivers.
Interface with LAPTOP, PC or compatibles through USB port
Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Features Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
Optimum programming for each individual device
Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5v Low voltage devices
Not need exterior adapter for mostly devices.
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
Auto-run mode starts programming automatically upon detection of chip insertion
Supports WindowsXP/Vista/ Windows 7 (32bit and 64bit)/ Windows 8 (32bit and 64bit)
Supports eight languages,such as Chinese(Simplified),Chinese(Traditional),English,Korean,Poland,Italian,Portuguese，Dutch, Turkish and Hungary.

Supported device list: http://www.weilei.com.cn/VP-596list.htm

PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory

PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

IC TEST:
TTL (74 series), CMOS (40/45 series) Logic IC
DRAM (4164, 41464 ...), SRAM (2114, 6116 ...) memory device

Wellon VP-596 programmer updates:

WEILEI updates software and device algorithm regularly. You can get the latest software free of charge through interne

Package list:

Wellon VP-596 Universal programmer, cable, manual, software included

Warranty & Technical Support:

15 day moneyback guaranty, three year warranty, All Programmer Device is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase. Technical support is available by email.

The Standalone mode is ideal for production environments not only because it doesn't require any technical skill to use, but for its security features. You can set up a passkey sequence that must be entered to begin programming, and can set it to require a passkey sequence after a set number of successful programming operations. This ensures against technological espionage, as you can keep track of exactly how many parts were programmed versus how many you have in production.

The programmer is designed using state-of-art hardware architecture with on-board high-speed CPU, RTOS, FPGA, CPLD and high-quality universal pin-drivers. The universal pin-drivers can route programmable precision voltage signals, GND and CLK to any pin. An FPGA provides full I/O signals (level programmable from 1.5V to 5V) to up to 48 pins. This makes the programmer truly universal: Both current and future 5V and low-voltage devices are supported. Different devices in the same package share one adapter. For example, the only QFP44 adapter (WL-TQFP44-U1) supports all MCUs, PLDs and memory. All DIL devices are supported directly with the standard ZIF48 socket.

Manufacturer-approved algorithms, precision and clean signals promise high programming yield. Algorithm waveform is generated by hardware offering 0.01V programming voltage resolution and 1-microsecond timing resolution. Special design was made to eliminate overshoot and ground bounce. Algorithms are performed with state-machine architecture constructed with an FPGA to achieve an ultra-high programming speed.

Insertion and continuity check are performed before programming to protect devices from damage due to operator error. Over-current and over-voltage protection is enacted to each pin to protect the programmer hardware from damage due to bad chip short circuit and ESD.

The included WL-ISP-U1 in-system programming adapter's 10 flying leads are all labeled, so you can be sure that you're putting the correct wire on the correct pin when you need to program your devices in circuit.
