Fluke 15B+ is the High Performance Digital Multimeters for Mobile Phone Repairs, FLUKE F15B+ Auto Range AC DC Voltage Current Digital Multimeter Meter.

Fluke 15B+ High Performance Digital Multimeter for Mobile Phone Repairs

Fluke 15B+ Digital Multimeter Features :
- Faster response
- Greater capacitance range: 0.01nF ~ 1000μF
- The more bright: Add white LED backlight
- Larger screen: Larger than the original 1.5 times

Specifications:
- Maximum Voltage between any Terminal and Earth Ground: 1000 V
- Display(LCD): 4000 counts,updates 3/sec
- Battery Type: 2 AA,NEDA 15A, IEC LR6
- Battery life: 500 hours minimum(50 hours in LED Test mode without load. The hours with load depends on the type - of LED under test)
- Operating Temperature: 0 deg to 40 deg
- Storage Temperature: -30 deg to 60 deg
- Operating Humidity: Non-condensing≤90%at 10deg to 30deg;≤75% at 30deg to 40deg
- Operating Humidity,40MC Range: ≤80% at 10deg to 30deg;≤70% at 30deg to 40deg
- Operating Altitude: 2000m
- Storage Altitude:12.000m
- Temperature Coefficient: 0.1×(specified accuracy)/deg(<18deg or > 28deg)
- Fuse protection for current inputs: 440 mA,1000 V Fast Fuse, Fluck specified part only.
                                                                             11A,1000v Fast Fuse, Fluke specified part only.

Fluke 15B+ Digital Multimeter detail:
- Size(H×W×L): 183×91×49.5(mm)
- Weight.: 455g
- IP Rating: .IP 40
- Safety: .IEC 61010-1, IEC61010-2-030 600V CAT Ⅲ,1000V CATⅡ，Pollution Degree 2
- Electromagnetic Environment: IEC 61326-1:Portable
- Class A Equipment(Industrial Broadcasting and Communication Equipment)

Function             Range                      Accuracy
AC Volts: 400mV / 4V / 40V / 400V / 1000V, +/-3.0+3,  0.1Mv to 1,000V
DC Volts: 400mV / 4V / 40V / 400V / 1000V, +/-1.0+10,  0.1Mv to 1,000V
AC Current: 400uA / 4000uA / 40mA / 400mA / 4A / 10A,  +/-1.5%+3 ,0.1UA to 10A
DC Current: 400uA / 4000uA / 40mA / 400mA / 4A / 10A,  +/-1.5%+3 ,0.1UA to 10A
Capacitance: 50nF/ 200Nf / 2Uf / 20Uf / 200Uf / 20Mf  ,+/-2%+5, 0.01nF to 100uF
Resistance :400 / 4K / 40K / 400K / 4M / 40M Ohm,  +/-0.5%+3, 0.1 ohm to 40Mohm

RANGE VOLTS AC 0.1Mv to 1,000V
RANGE VOLTS DC 0.1Mv to 1,000V
RANGE AC CURRENT 0.1UA to 10A
RANGE DC CURRENT 0.1UA to 10A
RANGE RESISTANCE 0.1 ohm to 40Mohm
RANGE CAPACITANCE 0.01nF to 100uF

VOLTAGE AC 400mV / 4V / 40V / 400V / 1000V, +/-3.0+3
VOLTAGE DC 400mV / 4V / 40V / 400V / 1000V, +/-1.0+10
RESISTANCE 400 / 4K / 40K / 400K / 4M / 40M Ohm,  +/-0.5%+3
CAPACITY 50nF/ 200Nf / 2Uf / 20Uf / 200Uf / 20Mf ,+/-2%+5
CURRENT AC 400uA / 4000uA / 40mA / 400mA / 4A / 10A,  +/-1.5%+3
CURRENT DC 400uA / 4000uA / 40mA / 400mA / 4A / 10A, +/-1.5%+3

Fluke 15B+ Digital Multimeter Package list:

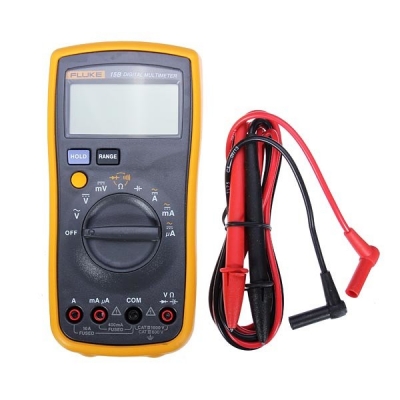

- 1 x Original Fluke 15B+ digital multimeter
- 2 x Test lead lines
- 1 x User Manual
