HDS j2534 is high performance vehicle diagnostic interface for honda. Honda HDS diagnostic cable is affordable for Professional Technicians, CarPCs, the aftermarket, and automotive enthusiasts. J2534 hds cable PCMSCAN Version Running on ISO and VPW.
HDS J2534 for Honda V2.018.013 OBD2 Diagnostic Cable for Honda Support CAN Bus
Software Version: 2.018.013
Firmware Version: 1.4.1
Recommendation Operating System: XP 32bit
Applicable models: 2010 and 2010 before
This includes a J2534 driver and delivers full-speed (12mps) USB 2.0 performance.
Lost cost, high performance pass-thru diagnostic tool for use with PC
Simple packaging with electronics contained inside the cable
J2534 and J2534-1 compliant device driver
Commercial Range (-30 to +70° C)
Dimensions: 3" x 1.75"
Cable length: 135 cm
Operating Voltage: Bus-powered by USB
Bus Protocols supported by the MFC for Honda
CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)
KWP2000 (ISO9141 / ISO14230)
Short to Ground pins 1, 9 and 15
VPP +5 Pin 12
The HDS J2534 is a USB pass-thru device that utilizes the SAE J2534-1 API. What this means is that this uses a standard communications interface to the vehicle, allowing it to work with 3rd party diagnostic applications. Different diagnostics and data logging applications supported are currently supported by it, with more being added all of the time.
PCMScan Diagnostics and Data Logging Software
This full version of PCMScan allows viewing, charting, data logging, and playback of diagnostic data in real time. Realistic looking gauges can be moved, resized, and laid out to resemble your own dashboard. Display English or Metric units. Read stored Diagnostic Trouble Codes (DTCs), clear the check engine light, and test emissions related systems.
PCMScan running on ISO and VPW
PCMScan running on ISO(M-ISOCAN) or VPW(M-VPWCAN) supports all ISO141 import vehicles and all CAN vehicles including many other automaker brands. By 2008 most vehicles on the road will be CAN based and supported by the ISO/CAN adapter.
HDS J2534 also provides an application programmer interface (DLL) for OEMs, integrators, or end-users to develop their own PassThru (SAE J2534) applications. Create your own applications in LabVIEW tm, C or Visual Basic.

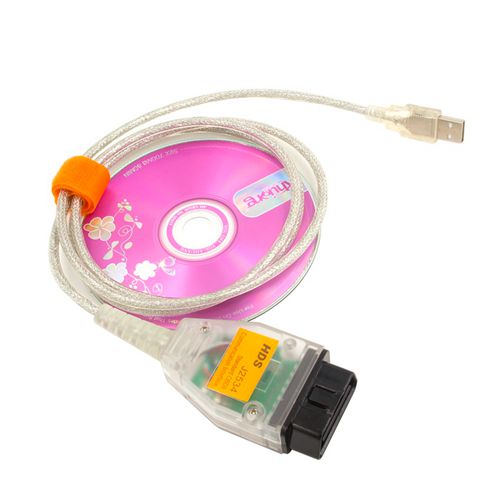

HDS j2534 Packing-list:
1 x HDS J2534 Cable
1 x Installation CD (J2534 compatible)
