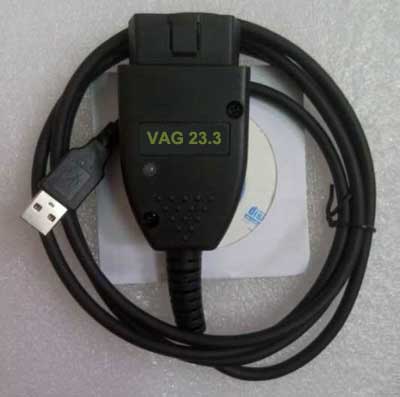

VAG COM 23.3.1 ATMEGA162 Interface is arrived on obd2cartool vag diagnostic cable centre. VAGCOM 23.3.1 hex can usb interface with ATMEGA162 + FT232RL + L9637D + 16V8B. VCDS 23.3.1 full active cable For VW Audi Seat Skoda,it is BUG fixes and improvements support Windows 10 system.

ATMEGA162 VAG COM 23.3.1 full active cable VAGCOM 23.3.1 English hex can usb interface For VW Audi Seat Skoda

Option 1:  English version 23.3.1
Option 2:  French version 23.3.1
Option 3:  German version 23.3.1
Option 4:  Polish version 23.3.1

VCDS VAG COM Cable Software Multi-language As Following:

EN   English     V23.3.1
HGJ  Hungary  V23.3.1
FRM  French    V23.3.1
DE  German     V23.3.1
AKP  Poland     V23.3.1
NEZ  Denmark  V23.3.1
AER  Swedish    V23.3.1
CN  Chinese     V19.6.3
PTT  Portugal  V22.3.1
EST  Spain        V22.3.1
ITT  Italy           V21.3.0
ROJ  Romania    V23.3.1
RUS  Russian     V22.3.1
PRI  Netherlands  V22.10.0
CZ  Czech             V19.6.2

TIPS: If you need any other languages except the options, welcome to leave messages to us.  (Such as Pls give me ROJ OR AKP....)

VAG COM VCDS 23.3.1 Features:

Language: English or French
Software Version: VCDS 23.3.1 EN / FR
Firmware Version: 1.96
Supported Vehicle List: For AUDI VW SEAT SKODA
Chip Edition: ATMEGA162 + FT232RL + L9637D + 16V8B
System requirement: Windows XP, Vista, 7, 8 and 10(32-bit and 64-bit)
(It does not support Windows 95, 98, ME, and NT4 operating system)

Note: VCDS 23.3.1 English/ French is not NEC project, ATMEGA162 + FT232RL + L9637D chips support DIY any version and languages by your dumps!!

There have one work smooth Vagcom 23.11.1 HEX V2 USB Interface VCDS 23.11 online update version 16 multilanguage, it is with good feedback .

Good feedback from this one:

OBD2cartool.com vagcom 23.3.1 vcds 23.3.1 english tested screen:

VCDS 23.3.1 online update version supports 16 Languages.( Support 16 languages, including of Chinese, English, French, German, Russian, Italian, Swedish, Danish, Czech, polish, Dutch, Hungarian, Portuguese, Spanish, Slovenia, Romania.)

VAGCOM 23.3.1 stable version highlight:

Support reprogramming newer language and version by your self.
High quality original brand new IC production
After installation has been activated to support all systems diagnostics (including K1,K2,CAN,UDS)



VCDS 23.3.1 New added functions compare VAGCOM 17.8:

-Support for MLB2 platform cars (HEX-NET interface recommended)
-Support for 2016 and early model cars
-Greatly expanded the amount of DTC Freeze-Frame data dsiplayed
-Improvements in Advanced Measuring Value Selection Window
-Display of factory identifiers instead of arbitrary location numbers
-Support for Six-Digit security access codes
-HEX-NET Turbo and other speed optimizations
-Optimized low-level timing routines and CPU core affinity
-Major firmware enhancements for HEX+CAN and Micro-CAN interfaces
-Improved UDS mapping speed and reliability when subchannels are present; progress indicators.
-Fixes SRI reset in newer Crafter instruments.
-New ASAM data and Label Files
-Support vehicle list: For AUDI VW SEAT SKODA

Vagcom 23.3.1 New Features:

Auto Scan 1001.01
1. Control module unit information
2. Read fault codes 004.01
3. Output test 005
   Selective output test 005
4. Basic settings 006
5. Clear DTCs 004.10
6. Close control module 022
7. Pairs of coding control module (brush hidden) 007 (service 1A)
   008 (Service 22) From the station control module 007 coding (service 1A)
   008 (Service 22) Read measured value block 08 010.02 (KWP1281)
8. Advanced measurement reading
9. channel read 010.01
10. matching 012 014 (long)
11. Log (Known under KWP-2000 * Coding II) 015.01
12. View readiness 020.01 Guided ready state settings
13. security access 015.02
14. All supported DTCs
15. Common OBD-II function
16. Fault environmental data
17. Dual K-Line Support 7-PIN code 020.07
18. Upgrade to the latest fault code library
19. Direct CAN line diagnosis (Need to support diagnostic cables CAN line diagnosis)
20. Modes of transport 1001.03 (on)
    1001.04 (off) (Need to support diagnostic cables CAN line diagnosis)
21. Advanced measurement block
22. Support for dual engine control module

Compared to the previous version, the VAG 17.8 main changes is BUG fixes and improvements.

Vag com 23.3.1 Basic functions

00 Auto Scan
01 control module unit information
02 read fault codes
03 Output Test
       Selective output test (only for KWP-2000 *)
04 Basic settings
05 clear DTCs
06 Close Control Module
07 pairs of coding control module
       Slave control module for coding (only for KWP-2000 *)
Read measured value block 08
09-channel read (applies only to KWP-1281 *)
10 matching
11 Log (known under KWP-2000 * Coding II)
15 View Ready
16 security access (only for KWP-2000 *)
18 All supported fault codes (only for KWP-2000 *)
33 Common OBD-II function

VAG 23.3.1 Install Guide:

Downloaded VCDS software installation file, turn off internet, follow the steps to install the software correctly VCDS,You must install VCDS software on your computer's hard drive!( When installing software, please not plug cable with your PC!!)
Please dont run directly from other media VCDS software, the software may not run correctly
You can use a CD or USB flash drive to copy files to install VCDS on your computer hard drive you want to install, and then install it.

The appropriate diagnostic cable to connect the computer to the vehicle and turn the ignition switch of the vehicle, but it is not necessary to start the engine.

Click the [System Configuration], and then select the correct communications port
Click [Test] to confirm VCDS program can use the correct communications port, find diagnostic cables
Then click [Save]

You can now use all the features of the program VCDS. Ensure VCDS software can reliably access all the control modules that you have a vehicle to view the fault code. See the VCDS diagnostic system for vehicle applications list

VAG COM 23.3.1 Packing List:

1 x Vagcom 23.3.1 diagnostic cable
1 x CD with VCDS 23.3.1 software

VAG 23.3.1 FAQ:

Q: VAG COM 23.3.1 Support update online?
A: yes,but need reprogramming it by your dumps!

Q: VCDS 23.3.1 is long coding full functions?
A: yes.full functions.

Q: change PC time?
A: no need.

Q: what is VAG COM 23.3.1inside main chips ?
A: Chip Edition: ATMEGA162 + FT232RL + L9637D + 16V8B

Q: VAGCOM 23.3.1 can support all systems ?
A: yes, including K1,K2,CAN,UDS
